LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet

Brand Name : TC

Model Number : HB-22-6-C24

Certification : IEC TIA569-D

Place of Origin : Shanghai, China

MOQ : Negotiate

Payment Terms : T/T

Contact Now

LVJB Enclosure 570mm×1000mm×165mm Built-in Design SPCC
Professional built-in LVJB enclosure designed for telecommunications and network applications with SPCC construction and comprehensive component integration.
General Requirements
Operating Conditions
  • Operating temperature: -20℃ to +60°C
  • Relative humidity: Normally not exceeding 90% (+40℃)

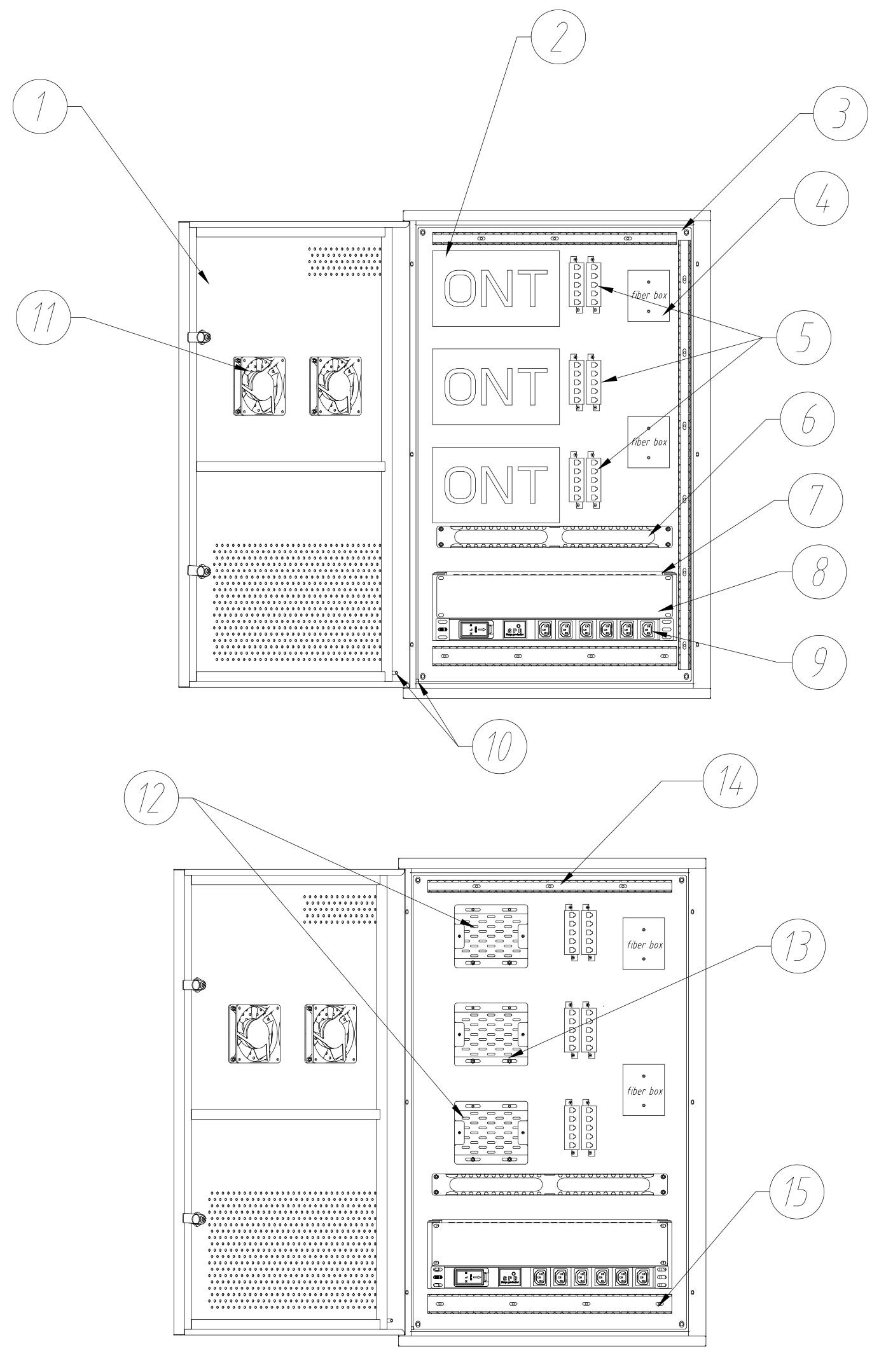

Enclosure Design & Components
LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet
No. Parts Qty. Dimensions (mm)
1Cover1/
2Space for ONT3/
3Installation Panel1/
4Space for Fiber Box2/
5LSA6/
6Space for Cable Management2/
7Space for Copper Patch Panel1/
82U Blank Panel1/
9Space for PDU1/
10Grounding Screw2/
11Fan2/
12Bracket for ONT (High Type)2/
13Bracket for ONT (Low Type)1/
14Cable Tray125×80×500mm
15Cable Tray140×50×500mm
Cabinet Technical Performance
Mechanical Performance
  • Built-in design with external dimensions: 570×1000×165mm
  • Base size: 550×1000×150mm
  • Color: RAL9005
  • Constructed from SPCC material with durable spray coating
  • Flat, sturdy door with opening angle ≥180°
  • Flexible and reliable door operation
  • Sturdy box structure with consistent, interchangeable assembly
  • No sharp edges or corners on exposed surfaces
  • Knockout holes reserved for maximum inlet/outlet lines
  • Equipped with 2 fans and door outlets for optimal heat dissipation
  • PDU specification: Refer to "PDU-20A-6G-M-P" datasheet
  • 19' mounting rail compliant with TIA/ECA-310-E standard
Standards Compliance
Meets IEC TIA569-D standard requirements and seismic performance specifications.
Packaging, Transportation and Storage
Packaging
LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet
Transportation Guidelines
Avoid violent vibration, collision, falling, direct rain, snow, and sun exposure during transportation.
Storage Conditions
  • Temperature range: -25℃ to 60℃
  • Relative humidity: ≤85%
  • Store in dry, ventilated warehouse free of corrosive gases
